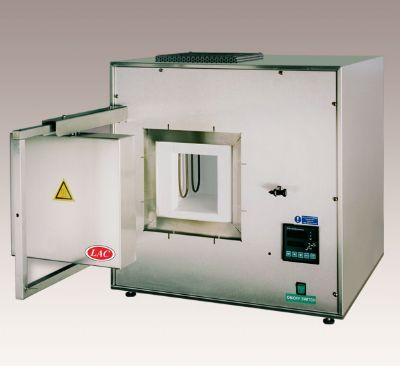

High-temperature Furnace VP

高温炉VP

Application

High temperature furnaces are the ideal choice for sintering special glass， e.g. quartz glass or for melting trials in the laboratory.

Description of the construction of the furnace:

* frameless construction

* KANTHAL SUPER heating elements

* door equipped with security limit switch

* feeder cables with uniphase or CEE three phase plugs

* furnace equipped with cooling fan

* type B thermocouple on the top of furnace chamber

* INDUSTRY controller allows saving of 30 control programs in the internal controller memory， each program can consist of up to 15 steps， operator may start the desired program on a preset date and time using the installed real time clock

Standard equipment of the furnace includes:

* programmable INDUSTRY controller

* manual door opening TO THE SIDE

Optional accessories:

* PC Interface R 232/485

* software for the monitoring and the recording of the temperature cycle

* temperature graphic recorder

* protective atmosphere supply for one or more gases

Benefits:

* rust-free

* attractive design

* very even temperature distribution at DIN 17052-1

* top insulating materials (low power consumption and quick achievement of the required temperature)

* high accuracy programmable temperature adjustment

* solid state relay (fluid and silent operation with minimum disturbance of the surrounding mechanisms)

* top workmanship and safety in service

应用范围：

高温熔炉是烧结特殊玻璃如石英玻璃或实验室熔化试验的理想选择

结构描述：

·优质花纹不锈钢外壳

·炉门入口使用的特殊防火材料

·门可以旋转，便于调节关门角度

· 采用Kanthal硅钼棒加热，并由可控硅控制

·炉门安装断电开关

·带单组插头或三项东欧插座的供电电缆

·电控元件由风扇冷却

· B型热电偶设于炉箱顶部

·工业控制器的内部控制器可以保存30条控制程序，每条程序由至少15步组成，操作员可以按照安装的实时钟表选择预设的时间和日期

标准设计包括：

·工业控制器

·手动门

优点：

·完全防锈

·设计独特

·优良的隔热保温效果，防止炉外壳水蒸汽凝结

·**的温度分布

·**绝缘材料（耗电量低，可在要求的温度下迅速启动）

·高精确度的温度调整系统

·固态继电器（运转流畅且无声，因此对周围设施产生的震动极小）

·完善的服务系统，包括加工车间、硬件及安全保险设备

额外收费附件：

· R 232/485界面

·温度循环监控记录软件

·温度循环图解记录器

·惰性气体保护装置

类型

**温度

内积

外部尺寸（w*h*d）

内部尺寸（w*h*d）

**输入

正常输入

重量

电压

LAC

°C

L

mm

mm

kW

kW

kg

V

VP 02/16

1600

2

660x680x740

130x150x135

3

3

90

230

VP 04/16

1600

4

660x680x740

130x160x180

3.5

3

100

230

VP 10/16

1600

10

850x1595x775

200x200x250

9

6

290

400

VP 20/16

1600

20

850x1595x775

250x250x310

12

8

315

400

VP 70/16

1600

70

1100x1750x1150

400x300x600

18

14

350

400

VP 02/17

1700

2

660x680x740

130x150x135

3

3

90

230

VP 04/17

1700

4

660x680x740

130x160x180

3.5

3

100

230

VP 10/17

1700

10

850x1595x775

200x200x250

9

6

290

400

VP 20/17

1700

20

850x1595x775

250x250x310

12

8

315

400

VP 70/17

1700

70

1100x1750x1150

400x300x600

18

14

350

400
