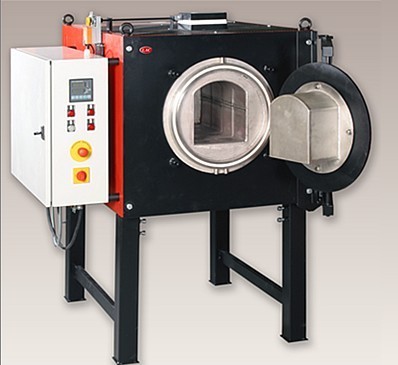

Hardening furnace with gastight retort PKR and PKRC

可控气氛炉PKR、PKRC

Application

Gastight chamber furnaces with retort are used especially for heat treatment of materials in controlled atmosphere (argon， nitrogen， forming gas etc.) with low gas drain， to the max. temperature1100Cfor bright annealing， tempering， soldering， steel powder sintering.

Description of Hardening Furnace in Semi-gastight design:

* steel frame

* stainless steel gas-tight retort with water cooled collar

* door sealed with silicon seal

* overpressure gas outlet

* protective atmosphere supply

* door equipped with safety terminal switch

* programmable INDUSTRY controller for saving up to 30 control programs in the internal controllermemory， each program can consist of up to 15 steps， operator may start the selected program on a preset date and time thanks to the installed real time clock

* switchboard on side of furnace

* thermocouple type S

* semiconductor non-contact switch relay

Standard design of the PKR furnace includes:

* manually operated door

* controller INDUSTRY with limit unit

* stand

* manually-operated inlet of protective atmosphere for 1 gas

* pressurized cooling with automatic flap on input and output of air cooling

Optional accessories:

* graphic temperature recorder

* PC interface R 232 or R 485

* atypical stand

* overpressure ventilation

* air-pump

* charge thermocouple

* spare retort

* circulation of retort atmosphere (only up to900C)

* full automatic inlet of protective atmosphere

* manovacuometer

Benefits:

* even distribution of temperature according to DIN 17052-1

* heating spirals on floor of furnace covered by protective SiC plate with high mechanical resistance

* minimal inert gas consumption

应用范围：

可控气氛炉特别用于受控空气（氩、氮、合成气体等等）中原料的热处理。**温度为1100℃，主要用于退火，回火，锡焊，钢铁粉烧结

结构描述：

* 钢的结构

* 炉门带有冷却水的不锈钢内胆

* 门密封由耐高温硅密封胶条保证

* 过压排气管

* 熔炉带有保护气体入口

*熔炉由轻质耐火砖保温

* 炉子由电热丝加热，并被安装在炉子的两侧和地府

* 电炉带有断电开关，

* INDUSTRY控制器可以存储30个程序，每个程序可以由15个步骤组成，由于安装的实时钟操作员可以在预先设定日期和时间来开始选择程序

* 独立的配电系统

* S型热电偶

* 半导体无接触的继电器

标准设计包括：

* 手动门

* 工业控制器

* 架子

* 手工操作保护空气的入口

优点：

* 熔炉侧面和底部的加热确保根据DIN 17052-1熔炉内空气的平均分配

* 带有高机械阻力，由硅金属板覆盖的熔炉底部的暖气盘旋管

* *小的惰性气体消费量

额外收费附件：

* 图解的温度记录器(适合温度周期的记录)

·界面 R 232 或R 485 (适合控制到电脑的界面)

* 非典型的架子

* 强制冷却装置（通过风机排热）

* 独立的温度检测装置（可以实时观测工件的温度）

* 真空泵

* 带有内循环装置的炉胆 (只到达900℃)

* 自动的气体入口

* 与真空泵相连的自动气体入口

类型

**温度

体积

炉胆尺寸 （宽高深）

外部尺寸 （宽高深）

功率

重量

输入

LAC

oC

L

mm

mm

kW

kg

V

PKR 35/11

1100

20

290x250x550

1250x1450x1300

11

400

400

PKR 55/11

1100

40

400x250x680

1400x1450x1450

13

570

400

PKR 130/11

1100

75

500x250x900

1450x1450x1550

21

950

400

PKR 180/11

1100

145

550x400x900

1500x1650x1550

29

1050

400

PKR 350/11

1100

300

750x450x1310

1750x1750x2200

50

1350

400
