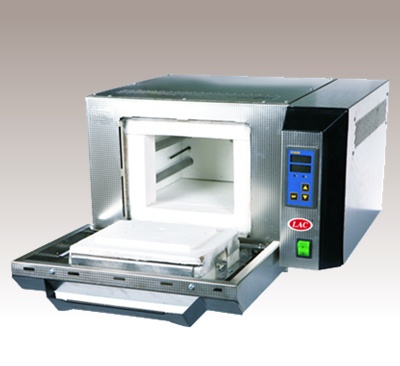

Laboratory Furnace LE

实验室电炉 LE

Application：

LE Furnaces are suitable for laboratory testing in which exact temperature distribution， controlled increase and decrease of temperature， and controlled cooling are important， and where it is also desirable that the heating elements are not in the interior space with the samples. The LE is especially good for heating material for the heat treatment of metal， various tests of sintering， calcination， determination of the softening point or of material sintering， combusting samples， enamel firing etc. The LE standard design features heating spirals which are placed in silica glass tubes to protect the spirals from corrosion by aggressive materials which can be released during treatment of the charge. It also includes an HT60B controller and a slide valve for opening the air supply， an airing flue and a special rust-resistant coating.

Standard design of the LE furnace includes:

- manual door opening downwards with a safety limit switch

- HT60B programmable controller

- heating elements inside protective silica tubes

- slide valve for opening the air supply

- airing chimney flue

Optional accessories for additional charge include:

- upgrade to PID controller HT 40P

- exhaust ventilator with a draft damper (only with HT40P controller)

- enhancement of the controller with RS 232 or RS 485 PC communication line (Monitoring SW Ht Monit optional)

Benefits of the LE furnace line include:

- reduced jacket temperature

- dynamic temperature curve regulation at DIN 17052-1

- low power consumption

- very reasonable price

用途

-用于所有种类的实验室测试，如医疗、口腔病学、卫生学、陶瓷学、玻璃制作等。熔炉适用于一些技术测试，这些测试注重温度的分布、温度德控制和发热元件和样品同时在内部空间时的冷却控制。熔炉特别易于进行在金属的加热过程对物质的加热、不同的烧结实验、煅烧、软化点的确定、物质的烧结、样品的燃烧和彩烤等等

主要结构描述

- 优质不锈钢外壳，框架结构

- 门由耐火材料填充、坚固耐用

- 高温室由绝缘的耐火材料组成

- 电热丝被石英管包围，并安装在电炉两侧

- 加热石英管包埋在耐火材料中

- 门上加厚矿物纤维耐火层

- 门上装有安全开关

- 采用单相电源

- - K型热电偶被安装在背面

标准设备包括

- HT40P 控制器

- 手动向下开门

可选附件（需要另行计费）

- 电脑连接端口R 232/485

- 排气风扇或者烟囱

- 监控软件和温度循环的记录

- 气体保护装置

Benefits: 优点

- 实现不锈

- 吸引人的设计

- 顶部绝缘材料( 低功率消耗， 在被要求的温度上快速开始)

- 可编程的高精确度的温度控制

- 固态继电器SSR (流畅和无声的运转， 周围机械装置的*小干扰)

- **的车间操作，保证硬件和使用中的安全

类型

控制器

**温度

容积

外部尺寸(wxhxd)

内部尺寸(wxhxd)

功率

重量

电压

LAC

°C

L

mm

mm

kW

kg

V

LE 05/11

HT40B

1100

5

470x330x455

170x130x230

1，8

18

230

LE 09/11

HT40B

1100

9，4

490x370x515

190x170x290

2，3

23

230

LE 15/11

HT40B

1100

14，4

550x370x565

250x170x340

3

30

230

LE 05/11

HT60B

1100

5

470x330x455

170x130x230

1，8

18

230

LE 09/11

HT60B

1100

9，4

490x370x515

190x170x290

2，3

23

230

LE 15/11

HT60B

1100

14，4

550x370x565

250x170x340

3

30

230
